NEMA Enclosure Ratings & IP Ratings

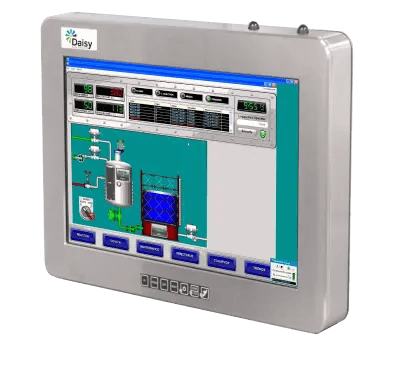

NEMA ratings are designed to clarify where enclosures can safely be installed. Indoor ratings, such as NEMA 1 and NEMA 12, prioritize protection against dust, dirt, and dripping liquids within controlled environments, including factories, offices, and laboratories.

Outdoor ratings are built for harsher conditions. Enclosures rated NEMA 3 or 3R protect against weather hazards, including rain, sleet, and snow. Higher outdoor ratings, such as NEMA 4 or 6P, offer stronger defense against water ingress, making them suitable for wash-down environments or submersion.

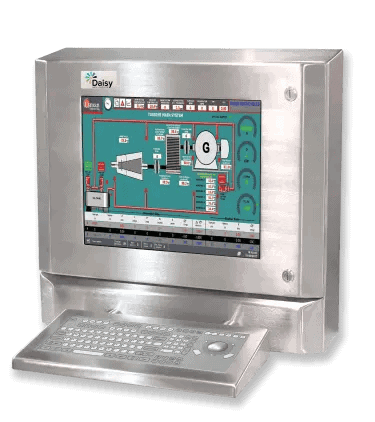

NEMA ratings are a U.S. standard defined by the National Electrical Manufacturers Association. IP (Ingress Protection) ratings are international standards set by the International Electrotechnical Commission (IEC).

Although both systems indicate how well enclosures protect against environmental hazards, they measure slightly different factors. IP ratings use three digits: the first describes protection against solids (like dust), the second against liquids (like water), and the third against mechanical impacts. The higher each number, the greater the protection against each element. On the other hand, NEMA ratings provide a more descriptive standard that also considers elements such as corrosion resistance and ice formation.

Because they evaluate different parameters, there is no direct one-to-one comparison between IP and NEMA enclosure ratings. However, many global manufacturers provide both ratings to help buyers assess equipment for international projects.

Explosion-proof equipment is essential in hazardous locations where gases or vapors may ignite. The National Electrical Manufacturers Association assigns NEMA 7 as the rating for explosion-proof enclosures. These enclosures are constructed from heavy-duty materials, such as cast aluminum or stainless steel. They are designed to survive extrinsic explosions and to contain internal explosions while preventing flames or gases from escaping into the surrounding environment.

NEMA 8 also exists for hazardous applications, but this equipment is immersed in oil to prevent ignition. (Note: NEMA 7 and NEMA 8 are equivalent to Class I, Div. 1.) For most situations requiring explosion-proof performance, NEMA 7 remains the standard choice. It provides the rugged, certified protection needed in industries such as oil and gas, mining, or chemical processing.

Yes, maintaining a NEMA enclosure is critical to ensuring it continues to perform as intended.

Regular inspection should include:

• Checking seals and gaskets for cracks, dryness, or wear
• Inspecting for dents, corrosion, or other physical damage
• Ensuring fasteners, hinges, and latches are intact and functional
• Cleaning the exterior and, when safe, the interior
• Verifying that conduit entries and openings maintain their seal

It may seem logical to assume that a higher NEMA number means a higher level of protection, but that’s not always the case. Instead, each rating is designed for specific conditions. For instance, NEMA 4 protects against rain and hose-directed water, while NEMA 12 focuses on dust and dirt in indoor environments. Neither is “better” than the other. They simply address different hazards.

When deciding, focus on the operating environment, not the number. Understanding this distinction helps organizations avoid overspending on unnecessarily rugged enclosures or, conversely, under-protecting equipment.

Class I Division 1 refers to environments that have flammable gases, vapors, or liquids present in normal working conditions. These areas are considered the highest-risk hazardous locations because explosive concentrations of substances are part of day-to-day operations.

Examples include refineries, chemical plants, and drilling platforms. Electrical equipment in these environments must be explosion-proof or intrinsically safe to prevent ignition. NEMA 7 enclosures are often used in Class I Division 1 locations due to their robust explosion-proof design.

Class I Division 2 areas also involve flammable gases, vapors, or liquids, but the concentration of these materials is typically too low to be ignitable under normal conditions. Hazards may only arise during equipment malfunctions, maintenance, or leaks.

Examples of Class I Division 2 environments include certain manufacturing facilities, oil and gas sites with proper ventilation, or storage areas where flammable materials are present but not in ignitable concentrations. While still hazardous, these areas require less stringent protection than Class I Division 1 but still demand enclosures built to withstand occasional risks.

FM Approval is a certification awarded by FM Global, an international insurance and risk management organization. To receive the FM Approved mark, enclosures and other products undergo rigorous testing at FM Global’s Research Campus in Rhode Island.

Products are tested against fire and explosion hazards to verify they function as intended under dangerous conditions. The approval process includes audits, performance testing, and ongoing follow-ups to ensure compliance. For end-users, FM Approval provides confidence that the equipment meets stringent safety and reliability standards recognized worldwide.

IECEx certification is an international standard that ensures equipment can safely operate in explosive (Ex) atmospheres. This system is managed by the International Electrotechnical Commission (IEC) and streamlines approvals so manufacturers don’t need to undergo separate national certifications for each market.
