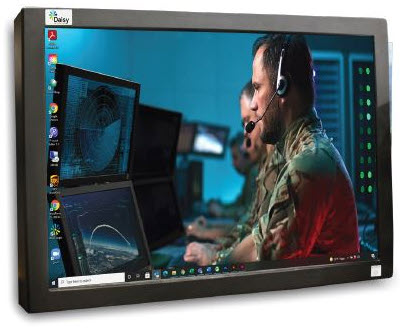

Rugged VESA mount monitor with 27” color LCD display. Housed in a powder coated air craft grade aluminum enclosure, this rugged monitor is suitable for military applications. Optional KVM extender allows the monitor to remain in the command center.
RATINGS:
• Shock & Vibration MIL-STD-810
• EMI MIL Standard 461 & 464
FEATURES:
• Rugged Military Monitor
• Powder Coated Aircraft Grade Aluminum
• Standard VESA Mounting Pattern
• 27" LCD
• 2560 x 1600 Resolution
• 800 nits Standard Brightness
• Displays feature On Screen Display (OSD)
• 28VDC
Unit of Measure
Options
|
Materials
|
Physical Dimension
|
Environmental
|
Electrical
|
Flat Panel Specifications
|
Connections
|
Note
Options
Options |
N/A 120 VAC Power Input 295 - Adds Display Port Video Input 300 - Adds HDMI Port Video Input 399 - Resistive Touch Screen 718 - Night Vision Filter 801 - Sunlight Readable Display |
Materials
Enclosure |
N/A Powder Coated Aircraft Grade Aluminum |
Viewpoint |
N/A Polycarbonate Standard |
Design |
N/A MIL-STD-461 MIL-STD-464 MIL-STD-810 |
Physical Dimension
Dimensional Drawing |
N/A
2936MA Drawing |
Height |
N/A 15.76 in |
Width |
N/A 26.46 in |
Depth |
N/A 4.34 in |
Weight |
N/A 32 lb |
Environmental
Operating Temperature |
N/A 0 to 40 ºC32 to 104 ºF |
Storage Temperature |
N/A -40 to 60 ºC-40 to 140 ºF |
Shock |
N/A MIL-STD-810 |
Electromagnetic Interference (EMI)/Radio Frequency Interference (RFI) |
N/A MIL-STD-461 MIL-STD-464 |
Flat Panel Specifications
Display Size |
N/A 27 in |
Maximum Resolution |
N/A 2560x1600 |
Maximum Resolution with Option 295 or 300 |
N/A 3840x2160 |
Typical Viewing Angle |
N/A 75 x 70 º |
Standard Brightness |
N/A 800 nits |
Backlight |
N/A LED |
