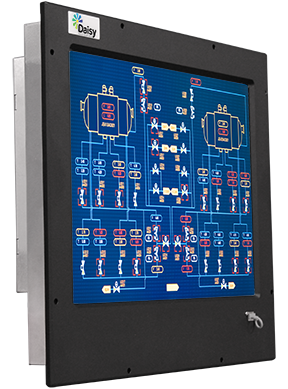

Rack mount monitor housed in powder coated aircraft grade aluminum bezel enclosure with 21.3" LCD color display featuring On Screen Display (OSD). Customizable to include a touchscreen and safety glass, as well as optional accessories including KVM extender to keep PC safe off the plan floor.
RATINGS:
- NEMA 12
FEATURES:
- Rack/Panel Mount Design
- Powder Coated, Aircraft Grade Aluminum Bezel Enclosure
- 21.3” LCD
- Integrated Power Supply 110/220 VAC
- Viewing Cone up to 170°
- 1600x1200 Resolution
- 1000 nits Standard Brightness
- Lexan Viewing Window
- Front Mounted Pass Through USB-A Port
- Perforated Rear Cover with Rear Access Panel
- Recessed Rear-Mount Receptacles
Unit of Measure
Options
|
Materials
|
Physical Dimension
|
Electrical
|
Environmental
|
Flat Panel Specifications
|
Note
Options
Options |
N/A 295 - Adds Display Port Video Input 300 - Adds HDMI Port Video Input 304 - Safety Glass 399 - Resistive Touch Screen 718 - Night Vision Filter 776 - Multi-Touch Projected Capacitive Touch Screen 796 - Thermo Electric Heater w/ Thermostat Control 801 - Sunlight Readable/Wide Temperature Range Display |
Accessories |
N/A 5511 - Black Box Kybd/Video/Mouse Extender System 5529 - Fiber Optic Kybd/Video/Mouse Extender System 5539 - Black Box USB Kybd/Video/Mouse Ext. System 5563 - ADDERlink X-USB PRO-US Extender System |
Materials
Enclosure |
N/A Powder Coated Aircraft Grade Aluminum |
Viewpoint |
N/A Polycarbonate Standard |
Design |
N/A 21.3 in. Rack Mount |
Physical Dimension
Dimensional Drawing |
N/A
2577AB Drawing |
Height |
N/A 18.99 in |
Width |
N/A 21.08 in |
Depth |
N/A 3.88 in |
Environmental
Operating Temperature |
N/A 0 to 40 ºC32 to 104 ºF |
Storage Temperature |
N/A -20 to 50 ºC-4 to 140 ºF |
UL Approvals |
N/A 60950-1 |
CE Approvals |
N/A Low Voltage Directive (LVD) |
