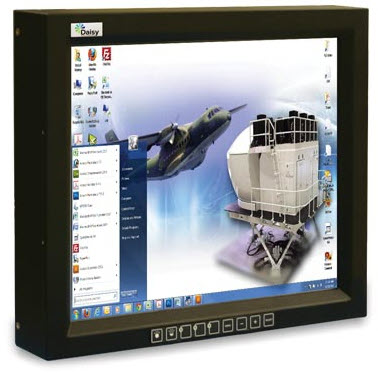

A 20.1" industrial monitor housed in a NEMA 1 enclosure, with a removable rear panel for easy maintenance and polycarbonate viewing window. With an LCD color display, this monitor is suitable for light industrial applications and moderately rugged conditions.

RATINGS:

  • NEMA 1

FEATURES:

  • Powder Coated 6061T6 aluminum enclosure, suitable for light industrial applications and moderately rugged conditions.
  • Flat panel technology reduces power consumption, heat generation and space requirements.
  • Displays feature On Screen Display (OSD) for contrast, color balance, and other adjustments.
  • 20.1″ display viewing cone up to 170°
  • 1600x1200 resolution
  • 200 nits standard bright­ness to fit your viewing needs.
  • Integrated power supply 110/220 VAC
  • Integrated resistive touch screen providing the ultimate user interface.
  • Standard VESA mount threaded hole pattern for universal mounting.
  • Flight control towers.
Unit of Measure

Options

Options

 N/A 295 - Adds Display Port Video Input 300 - Adds HDMI Port Video Input 718 - Night Vision Filter Full Color "White" NVIS 801 - Sunlight Readable Display

Accessories

 N/A 5511 - Black Box Kybd/Video/Mouse Extender System 5529 - Fiber Optic Kybd/Video/Mouse Extender System 5539 - Black Box USB Kybd/Video/Mouse Ext. System 5563 - ADDERlink X-USB PRO-US Extender System

Materials

Enclosure

 N/A Aluminum 6061-T6, Powder Coated

Viewpoint

 N/A Resistive Touchscreen

Design

 N/A NEMA 1

Physical Dimension

Dimensional Drawing

 N/A 2929AB Drawing

Height

 N/A 15.75 in

Width

 N/A 19.00 in

Depth

 N/A 4.13 in

View Height (VH)

 N/A 12.78 in

View Width (VW)

 N/A 15.92 in

Weight

 N/A 20 lb

Environmental

Operating Temperature

 N/A 0 to 40 ºC32 to 104 ºF

Storage Temperature

 N/A -20 to 60 ºC-4 to 140 ºF

Electromagnetic Interference (EMI)/Radio Frequency Interference (RFI)

 N/A CE

Electrical

Input Power

 N/A 110/220 VAC

Frequency

 N/A 50/60 Hz

Maximum Power

 N/A 60 W

Flat Panel Specifications

Display Size

 N/A 20.1 in

Maximum Resolution

 N/A 1280 x 1024 px

Typical Horizontal Viewing Angle

 N/A 85 º

Typical Vertical Viewing Angle

 N/A 85 º

Viewing Cone

 N/A Up to 170 º

Standard Brightness

 N/A 200 nits

Backlight

 N/A LED

Connections

Power Connection

 N/A Direct Current (DC) Barrel Jack Alternating Current (AC)/Direct Current (DC) Power Supply Provided

Video Input

 N/A Display Port HDMI VGA

Touchscreen

 N/A USB

Note

Note

 N/A Specifications are subject to change without notice.
