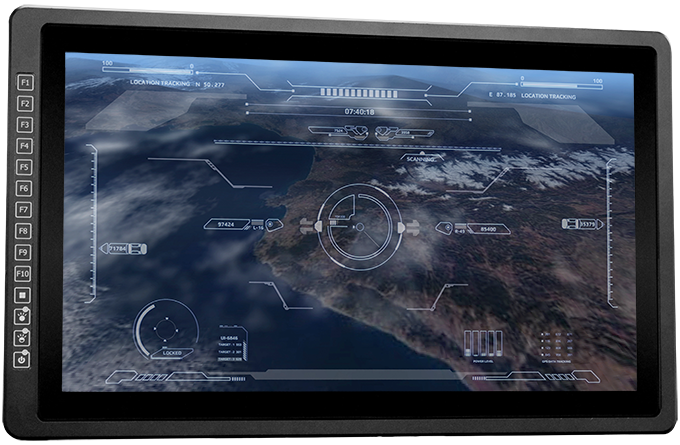

This lightweight, portable rugged PC is made of aluminum enclosure and features a special UV tolerable paint finish. Equipped with a 27" LED backlit touch screen display, this industrial computer makes data collection and monitoring easy throughout your rugged application.
RATINGS:
• NEMA 12
FEATURES:
• UV Tolerant Painted, 6061 T6 Aluminum
• Engineered to Withstand Higher Shock and Vibrations

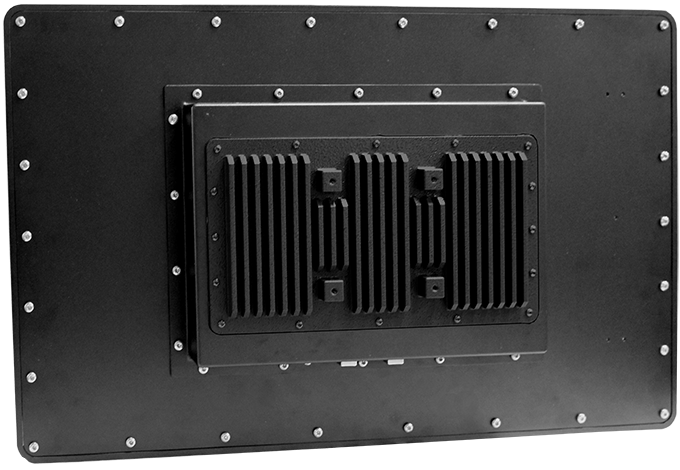

• Aluminum Fins allows Heat Transfer & Cooling for Extreme Temperatures (-20º C to 55º C)
• Standard VESA Mounting Pattern
• 27" LCD
• 1920x1080 Resolution
• 400 nits Standard Brightness
• Multi-Touch Projected Capacitive Touch Screen
• 1.90 GHz Intel® ATOM™ x6425RE Quad Core CPU
• 512GB Solid State Hard Drive
• 16GB RAM
• 1 GB Network Interface
Call for the latest SBC Features
Options
Options |
N/A 247A - i7-1185GRE is 1.8 GHz (4.1 GHz Turbo) w/ 64GB RAM 248 - Battery Power 250 - Moves Sealed Connectors to Bottom Gland Plate 272 - Windows® 10 Pro 64-Bit 284 - i7-6600U is 2.60 GHz (3.40 GHz Turbo) w/32GB RAM 297 - Windows® 11 Pro 64-Bit 796 - Thermo Electric Heater w/ Thermostat Control 801 - Sunlight Readable Display 813 - 24 VDC Power Operation |
Materials
Enclosure |
N/A Aluminum 6061-T6, Powder Coated |
Viewpoint |
N/A Projected Multi-Touch Capacitive Touchscreen |
Design |
N/A Fanless VESA Mount |
Physical Dimension
Dimensional Drawing |
N/A
4448HD Drawing |
Height |
N/A 16.88 in |
Width |
N/A 27.50 in |
Depth |
N/A 4.19 in |
Electrical
Input Power |
N/A 12 VDC Includes Separate 110/220 VAC to 12 VDC Power Pack |
Frequency |
N/A 50/60 Hz |
Environmental
Operating Temperature |
N/A -20 to 55 º/°C-4 to 131 º/°F |
Operating Temperature with Heaters |
N/A -22 to 131 ºF |
Storage Temperature |
N/A -20 to 75 ºC-4 to 167 ºF |
Vibration |
N/A IEC68 2-6 |
Shock |
N/A IEC68 2-27 |
Mean Time between Failures (MTBF) |
N/A 60000 H |
Computer Specifications
Motherboard |
N/A SBC, Integrated Graphics, 10/100/1000 Mbps, 1 xGbE Network Interface |
Processor (CPU) |
N/A 1.90 GHz Intel® ATOM™ x6425RE Quad Core |
Solid State Standard Storage |
N/A 512 GB |
Random-Access Memory (RAM) Standard Storage |
N/A 16 GB |
Note for Computer Specifications |
N/A Contact your Daisy Data Displays representative for information on the latest CPU, memory, and hard drive options. |
Flat Panel Specifications
Display Size |
N/A 27 in |
Maximum Resolution |
N/A 1920 x 1080 px |
Typical Horizontal Viewing Angle |
N/A 80 º |
Typical Vertical Viewing Angle |
N/A 80 º |
Viewing Cone |
N/A Up to 170 º |
Standard Brightness |
N/A 400 nits |
Backlight |
N/A LED |
Touchscreen Specifications
Technology |
N/A Projected Multi-Touch Capacitive |
Mechanical |
N/A Impact Resistant |
