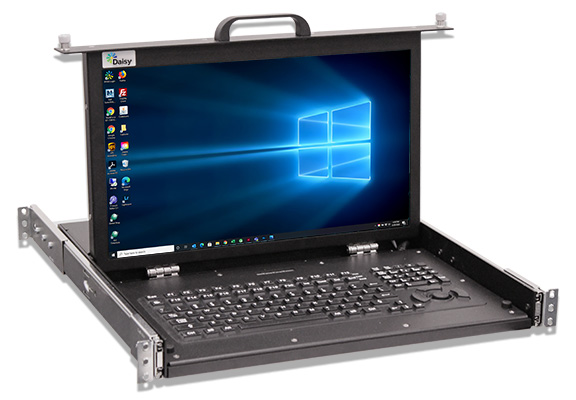

Save valuable rack space with Daisy’s new fold-down solution for controlling multiple servers from a single work station. This rugged 17.3" High-Definition LCD monitor housed in a NEMA 12 powder coated aluminum enclosure. Features a slide out, flip-up monitor drawer with integrated elastomeric keyboard, hula pointing device and KVM's in a single 1U high 19" rack.
RATINGS:
• NEMA 12
FEATURES:
• Powder Coated Aluminum Construction
• Fold-Down Slide Away Rack Mount Monitor Drawer
• Designed to Fit into a Standard 19" Rack, 1U High
• Recessed Rear-Mount Receptacles
• Front Mounted OSD controls
• Designed to Withstand Shock and Vibration, High Humidity and Salt Fog
• Conformal Coated PC Boards
• Operating Temperature -20C to 55C
• Includes Elastomeric Keyboard with Integrated Hula-Point
• Single Keyboard Mouse USB
• 17.3" LCD
• 1920x1080 resolution
• 400 NIT Standard Brightness
• VGA and DVI Video Inputs Standard
Materials
Enclosure |
N/A Aluminum Black Powder Coated |
Viewpoint |
N/A Polycarbonate Standard |
Design |
N/A National Electrical Manufacturers Association (NEMA) 12 |
Physical Dimension
Dimensional Drawing |
N/A
2445AA Drawing |
Height |
N/A 11.51 in |
Closed Height |
N/A 1.74 in |
Width |
N/A 18.90 in |
Depth |
N/A 16.25 in |
Weight |
N/A 21 lb |
Environmental
Operating Temperature |
N/A -20 to 55 ºC-4 to 131 ºF |
Storage Temperature |
N/A -20 to 60 ºC-4 to 140 ºF |
Non-Condensing Relative Humidity |
N/A 0 to 100 % |
Flat Panel Specifications
Display Size |
N/A 17.3 in |
Maximum Resolution |
N/A 1920 x 1080 px |
Typical Horizontal and Vertical Viewing Angle |
N/A 85 x 85 º |
Standard Brightness |
N/A 400 nits |
Optional Brightness |
N/A 1000 nits |
Backlight |
N/A Light Emitting Diode (LED) |
Mean Time between Failures (MTBF) |
N/A 65,000 hours |
