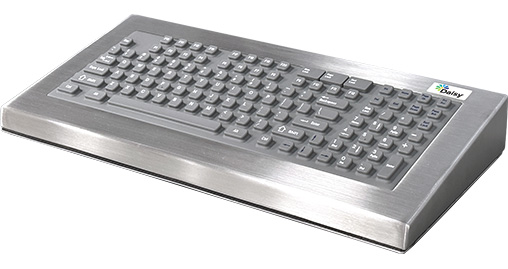

Rugged Elastomer keyboards with full travel keypad, housed in a NEMA 4X enclosure. Designed to fit your industrial or hazardous application, keyboard can be designed to fit desktop or panel mounted with or without integrated pointing device. Available with FM Approvals for Division 1 and Division 2 environments.

Unit of Measure

Standard Features and Benefits

Ratings

 N/A

Division 1

Enclosure

 N/A
  • FM Approved Non-Incendive Models for Hazardous Locations rated Class I, II, & III, Division 2, Group A-D, F and G or Class I, II & III, Division 1&2, Group C-G
  • Sealed Lemo™ Connectors
  • Built in NEMA 4X, Non-Incendive or Intrinsically Safe Pointing Devices
  • KVM (Keyboard/Video/Mouse) extender, up to 32,000 ft of separation between local & remote

Materials

Design

 N/A Intrinsically Safe Division 1, Desktop

Physical Dimension

Dimensional Drawing

 N/A 6813 Drawing

Height

 N/A 2.40 in

Width

 N/A 17.20 in

Depth

 N/A 8.20 in

Weight

 N/A 8 lb

Environmental

Desktop Non-Condensing Relative Humidity

 N/A 10 to 95 %

Panel Mount Non-Condensing Relative Humidity

 N/A 20 to 80 %

Operating Temperature

 N/A 0 to 55 ºC32 to 131 ºF

Storage Temperature

 N/A -40 to 85 ºC-40 to 185 ºF

Overlay Material

 N/A Polycarbonate with Hard Coat

Mean Time between Failures (MTBF)

 N/A 3 Million Keystrokes

Power

Direct Current (DC) Voltage Supply from Keyboard Port or PS/2 Mouse Port

 N/A 5 V

Direct Current (DC) Voltage Supply from Serial Mouse Port

 N/A 12 V

Maximum Current Draw (NEMA)

 N/A 200 mA

Maximum Current Draw (I.S.)

 N/A 15 mA

Cable

Keyboard Connector

 N/A 6-Pin Mini DIN

Pointing Device Connector

 N/A PS/2 - 6-Pin Mini DIN Serial - DB9 Receptacle USB - 4-Pin USB Type A

Length

 N/A 6 ft

Elastomer Chemical Resistance

Elastomer Chemical Resistance

 N/A Acids Alcohol Alkali Aromatic Hydrocarbons Chlorinated Solvents Cidex 7 Fluorochlorohydrocarbons Ketones Oxidizers Ozone Saline Soap

Options

Accessories

 N/A 9122 - I.S. Isolator Kit for Keyboard (I.S. Models Only) 9148 - Current Limiter Kit (Non-Incendive Models Only)

Additional Information

Additional Information

 N/A

Please note that all Daisy Data Displays equipment with pointing devices is no longer differentiated between Serial and PS/2. All models are now universal - the model numbers now end in UN. However, You must differentiate between Serial and PS/2 for I.S. Isolators.

Note

Note

 N/A

Please note that all Daisy Data Displays equipment with pointing devices is no longer differentiated between Serial and PS/2. All models are now universal - the model numbers now end in UN. However, You must differentiate between Serial and PS/2 for I.S. Isolators.

Series

 N/A 6800
