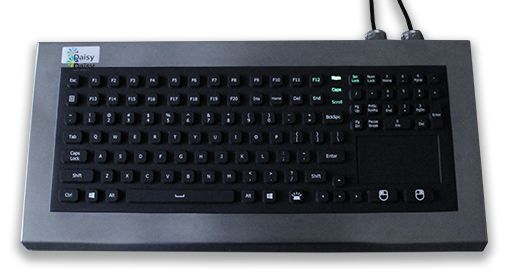

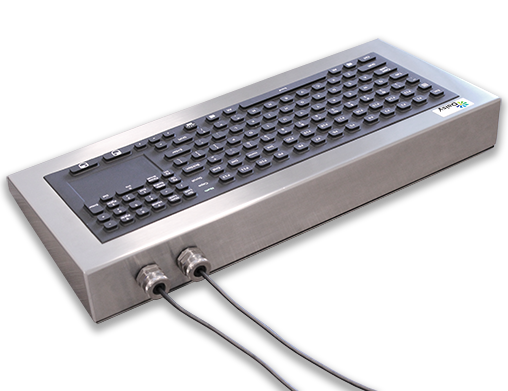

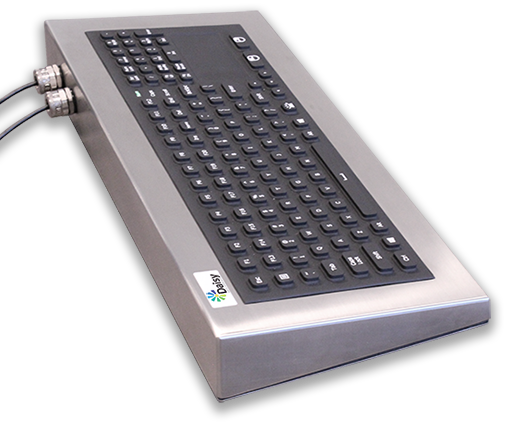

Rugged Elastomer keyboard with full travel backlit keys, and touch pad, housed in a NEMA 4X desktop enclosure. Designed to fit your industrial or hazardous application.

RATINGS:

  • NEMA 4X

FEATURES:

  • Desktop Design 109-Key Elastomer Keyboard with Full Travel Backlit Keys
  • Integrated Sealed Durable Touch Pad
  • Windows and Network Computer Compatible
  • NEMA 4X Stainless Steel Enclosure
  • Full Travel Key with Backlit Design makes for easy typing and viewing
  • Compatible with Windows™ 95, Windows™ 98, Windows™ NT, Windows™ 2000 Pro, Windows™ XP Pro, Windows™ 7, Linux and Network Computers
  • Built-In Static Shield Prevents Lock-ups Due to RF Noise
  • Elastomer is Impervious to Many Solutions
Unit of Measure

Standard Features and Benefits

Ratings

 N/A

NEMA 4X

Materials

Design

 N/A NEMA 4X, Desktop

Physical Dimension

Dimensional Drawing

 N/A 6860UB Drawing

Height

 N/A 2.40 in

Width

 N/A 17.20 in

Depth

 N/A 8.20 in

Weight

 N/A 7 lb

Environmental

Desktop Non-Condensing Relative Humidity

 N/A 10 to 95 %

Operating Temperature

 N/A 0 to 55 ºC32 to 131 ºF

Storage Temperature

 N/A -40 to 85 ºC-40 to 185 ºF

Overlay Material

 N/A Polycarbonate with Hard Coat

Mean Time between Failures (MTBF)

 N/A 3 Million Keystrokes

Power

Maximum Current Draw (NEMA)

 N/A TBD mA

Maximum Current Draw (I.S.)

 N/A TBD mA

Cable

Keyboard Connector

 N/A USB 4-Pin USB Type A

Pointing Device Connector

 N/A USB - 4-Pin USB Type A

Length

 N/A 6 ft

Elastomer Chemical Resistance

Elastomer Chemical Resistance

 N/A Acids Alcohol Alkali Aromatic Hydrocarbons Chlorinated Solvents Cidex 7 Fluorochlorohydrocarbons Ketones Oxidizers Ozone Saline Soap

Note

Series

 N/A 6800
