2610/2510KP Series: Y-Purge Division 1 Hazardous Area Monitors
Industrial Monitors

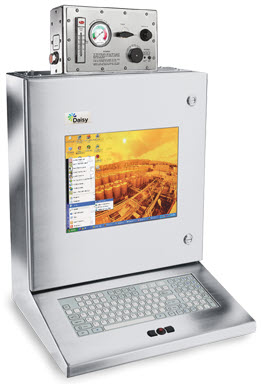

FM Approved, Division 1 Monitor with Y-Purge technology. Housed in a NEMA 4X stainless steel enclosure with hinged front door, polycarbonate viewing window, integrated industrial keyboard and pointing device. 2610 Series designed with integrated membrane or elastomer full-travel keyboard with joystick pointing device or 2510KP Series with 28-key keypad. These hazardous area monitors are available with a display up to 21.5" and customizable with optional touch screen and KVM extender.
RATINGS:
- FM Approved
- Class I, II, III, Division 1 & 2, Group A-G
- NEMA 4X
FEATURES:
- FM Approved Y-Purge Technology
- Alarm Board and Pressure Relief Valve
- 304 Stainless Steel Enclosure
- Available 15", 19" or 21.5" LCD Displays
- On Screen Display (OSD) for Contrast/Color Balance
- Membrane or Elastomer Full-Travel, Non-Incendive Keyboard with Joystick Pointing Device
- Viewing Cone up to 170°
- Resolutions to 1920 x 1080
- Brightness up to 600 nits Standard
- Internal DC Fans
- Impact Resistant Polycarbonate Viewing Window
Model # |
Item Name |
Enclosure |
Input Power |
Maximum Power |
Operating Temperature |
Maximum Resolution |
|---|---|---|---|---|---|---|
| 2513KP | N/A 15" Display Y-Purge Class I, Division 1 Hazardous Area Flat Panel Monitor | Enclosure N/A 304 Stainless Steel #4 Finish | Input Power N/A 110/220 VAC | Maximum Power N/A 45 W | Operating Temperature N/A 0 to 50 ºC32 to 122 ºF | Maximum Resolution N/A 1024 x 768 px |
| 2516KP | N/A 19" Display Y-Purge Class I, Division 1 Hazardous Area Flat Panel Monitor | Enclosure N/A 304 Stainless Steel #4 Finish | Input Power N/A 110/220 VAC | Maximum Power N/A 70 W | Operating Temperature N/A 0 to 50 ºC32 to 122 ºF | Maximum Resolution N/A 1280 x 1024 px |
| 2519KP | N/A 21.5" Display Y-Purge Class I, Division 1 Hazardous Area Flat Panel Monitor | Enclosure N/A 304 Stainless Steel #4 Finish | Input Power N/A 100/240 VAC | Maximum Power N/A 90 W | Operating Temperature N/A 0 to 50 ºC32 to 122 ºF | Maximum Resolution N/A 1920 x 1080 px |
| 2613 | N/A 15" Display Y-Purge Class I, Division 1 Hazardous Area Monitor | Enclosure N/A 304 Stainless Steel #4 Finish | Input Power N/A 110/220 VAC | Maximum Power N/A 45 W | Operating Temperature N/A 0 to 40 ºC32 to 104 ºF | Maximum Resolution N/A 1024 x 768 px |
| 2616 | N/A 19" Display Y-Purge Class I, Division 1 Hazardous Area Monitor | Enclosure N/A 304 Stainless Steel #4 Finish | Input Power N/A 110/220 VAC | Maximum Power N/A 70 W | Operating Temperature N/A 0 to 40 ºC32 to 104 ºF | Maximum Resolution N/A 1280 x 1024 px |
| 2619 | N/A 21.5" Display Y-Purge Class I, Division 1 Hazardous Area Monitor | Enclosure N/A 304 Stainless Steel #4 Finish | Input Power N/A 110/220 VAC | Maximum Power N/A 90 W | Operating Temperature N/A 0 to 40 ºC32 to 104 ºF | Maximum Resolution N/A 1920 x 1080 px |
