• 9040-9050 Series

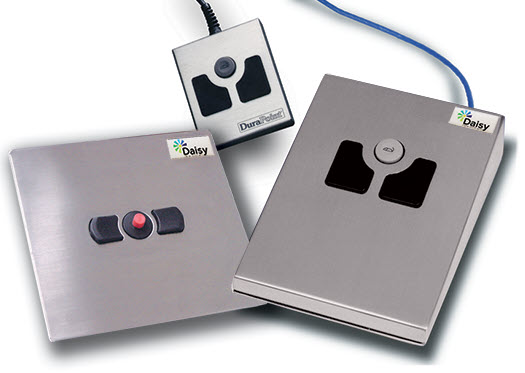

Industrial pointing devices are housed in NEMA 4X enclosure with univeresal PS/2 - serial interface. Includes DB9 (Serial) Connector with 6-Pin Mini DIN (PS/2) Adapter. Desktop or panel mount designs are available, so you can find the industrial pointing devices that fit all your industrial needs. Hazardous Pointing Devices are also available with FM Approvals, Class I & II, Division 1 & 2, Groups B-G for all your hazardous areas.

RATINGS:

  • FM Approved
  • Clalss I & II, Division 1 & 2, Group B-G
  • NEMA 4X


FEATURES:

  • NEMA 4X Stainless Steel Enclosure
  • Single-touch Button on Variable
  • Ruggedized Construction
  • Desktop or Vertically-mount Designs
  • 100% Sealed for Washdown Applications
  • Compatible with WindowsTM 95, WindowsTM 98, WindowsTM NT, WindowsTM 2000 Pro, WindowsTM
    XP Pro, WindowsTM 10 and Network Computers Desktop and Panel Mount Designs
  • Microsoft Mouse Compatible (two-button)
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Quote This Item Compare Items

Model #

Item Name

Enclosure

Front Surface Non-Condensing Relative Humidity

Rear Surface Non-Condensing Operating Temperature

Operating Temperature

N/A FM Approved Class I, Division 1 Intrinsically Safe Desktop, PS/2 Model Tuffpoint Industrial Pointing Device N/A 304 Stainless Steel #4 Finish N/A 10 to 95 % N/A 20 to 80 % N/A 0 to 60 ºC32 to 140 ºF
N/A NEMA 4X Desktop, PS/2 Model Tuffpoint Industrial Pointing Device N/A 304 Stainless Steel #4 Finish N/A 10 to 95 % N/A 20 to 80 % N/A 0 to 60 ºC32 to 140 ºF
N/A FM Approved Class I, Division 2 Non-Incendive Panel Mount, PS/2 Model Tuffpoint Industrial Pointing Device N/A 304 Stainless Steel #4 Finish N/A 10 to 95 % N/A 20 to 80 % N/A 32 to 140 ºF
N/A NEMA 4X Panel Mount, PS/2 Model Tuffpoint Industrial Pointing Device N/A 304 Stainless Steel #4 Finish N/A 10 to 95 % N/A 20 to 80 % N/A 0 to 60 ºC32 to 140 ºF
